`LinPath` Path Objects

LinPath

LinPath objects are used for creating paths formed by straight and curved lines.

They have pos and angle properties that define the current position and orientation angle respectively. Their default position is the origin and their default angle is 90 degrees (facing upward).

Their initial position and angle can be specified in the constructor.

import simetri.graphics as sg

pi = sg.pi
path = sg.LinPath()
print(f"path.pos: {path.pos}")
print(f"path.angle: {sg.degrees(path.angle)} degrees\n")

path2 = sg.LinPath((50, 70))
path2.angle = pi/3
print(f"path2.pos: {path.pos}")
print(f"path2.angle: {sg.degrees(path.angle)} degrees")

path.pos: (0, 0)
path.angle: 90.0 degrees

path2.pos: (0, 0)
path2.angle: 90.0 degrees

path.forward(dist): path.forward draws a line in the same orientation as the path.angle with given length.

import simetri.graphics as sg

canvas = sg.Canvas()

canvas.help_lines(pos=(-50, -50), width=300, height=300, spacing=50)

path = sg.LinPath()
path.angle = pi/4
path.forward(70.71)
path.angle = 0
path.forward(100)
path.angle = pi/2
path.forward(100)

canvas.draw(path, line_width=2)

canvas.display()

import simetri.graphics as sg

canvas = sg.Canvas()


path = sg.LinPath()
path.angle = sg.pi
d = 120
for i in range(12):
    path.forward(d)
    d -= 10
    path.angle -= sg.pi/2

paths = path.translate(120, 0, reps=4)
canvas.draw(paths, line_width=10, line_color=sg.terra_cotta)
canvas.help_lines(pos=(-150, -50), width=700, height=200, spacing=25)
canvas.display()

path.line_to(point): Draws a line between the path's current position and the given point. Path object's orientation angle changes to the orientation angle of the specified line, and its position changes to the given point.

import simetri.graphics as sg

canvas = sg.Canvas()

canvas.help_lines(pos=(-50, -50), width=200, height=150, spacing=50)

path = sg.LinPath()
path.line_to((120, 60))
print(f"path.pos: {path.pos}")
print(f"path.angle: {sg.degrees(path.angle):.2f} degrees")

canvas.draw(path, line_width=2)

canvas.display()

path.pos: (120, 60)
path.angle: 26.57 degrees

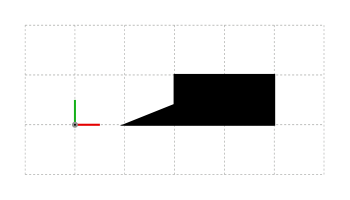

path.h_line(dist): path.h_line draws a horizontal line with the given distance. If the dist argument is negative then line is drawn in -x direction.
path.v_line(dist): path.v_line draws a vertical line with the given distance. If the dist argument is negative then line is drawn in -y direction.
path.close(): path.close() closes the path.

import simetri.graphics as sg

canvas = sg.Canvas()

canvas.help_lines(pos=(-50, -50), width=300, height=150, spacing=50)

path = sg.LinPath((50, 0))
path.h_line(150)
path.v_line(50)
path.h_line(-100)
path.v_line(-30)
path.close()

canvas.draw(path, line_width=2)

canvas.display()

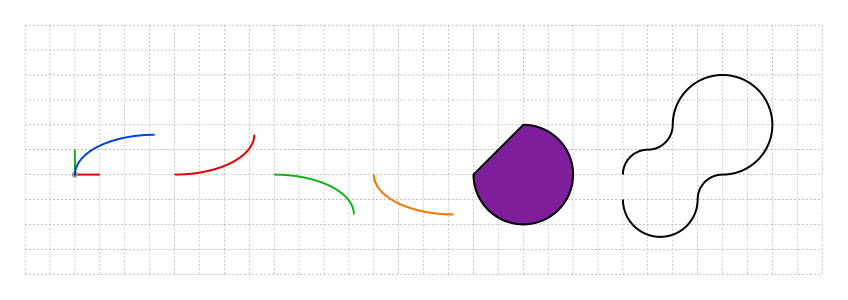

path.arc(radius_x, radius_y, start_angle, span_angle, rot_angle): path.arc draws and elliptic arc with the given parameters. Angles are in radians and counterclockwise positive from the positive x-axis.

import simetri.graphics as sg
pi = sg.pi

canvas = sg.Canvas()

canvas.help_lines(pos=(-50, -100), width=800, height=250, spacing=25)
path = sg.LinPath()

path.arc(80, 40, pi, -pi/2)
canvas.draw(path, line_width=2, line_color=sg.blue)

path2 = sg.LinPath((100, 0))
path2.arc(80, 40, -pi/2, pi/2)
canvas.draw(path2, line_width=2, line_color=sg.red)

path3 = sg.LinPath((200, 0))
path3.arc(80, 40, pi/2, -pi/2)
canvas.draw(path3, line_width=2, line_color=sg.green)

path4 = sg.LinPath((300, 0))
path4.arc(80, 40, pi, pi/2)
canvas.draw(path4, line_width=2, line_color=sg.orange)

path5 = sg.LinPath((400, 0))
path5.arc(50, 50, pi, 3 * pi/2)
path5.close()
canvas.draw(path5, line_width=2, fill_color=sg.purple)

path6 = sg.LinPath((550, 0))
path6.arc(25, 25, pi, -pi/2)
path6.arc(25, 25, -pi/2, pi/2)
path6.arc(50, 50, pi, -3 * pi/2)
path6.arc(25, 25, pi/2, pi/2)
path6.arc(37.5, 37.5, 0, -pi)

canvas.draw(path6, line_width=2)

canvas.display()

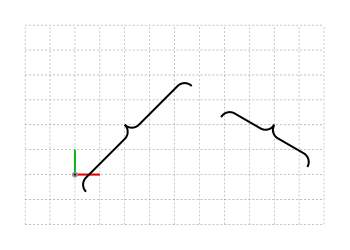

import simetri.graphics as sg

canvas = sg.Canvas()

def curly_brace(pos, angle, length=100, radius=10):
    x, y = pos[:2]
    x1 = length /2
    y1 = 2 * radius
    half = sg.LinPath()
    half.arc(radius_x=radius, radius_y=radius, start_angle=sg.pi, span_angle=-sg.pi/2)
    half.forward(x1 - y1)
    half.arc(radius_x=radius, radius_y=radius, start_angle=3*sg.pi/2, span_angle=sg.pi/2)
    brace = half.mirror(half.right, reps=1)

    brace.rotate(angle, (x1, y1))
    x2 = x - (length / 2)
    y2 = y - (2*radius)
    brace.translate(x2, y2)

    return brace

canvas.help_lines(pos=(-50, -50), width=300, height=200, spacing=25)
brace = curly_brace((50, 50), sg.pi/4, length=150)
brace2 = curly_brace((200, 50), -sg.pi/6, length=100)

canvas.draw([brace, brace2], line_width=2)
canvas.display()

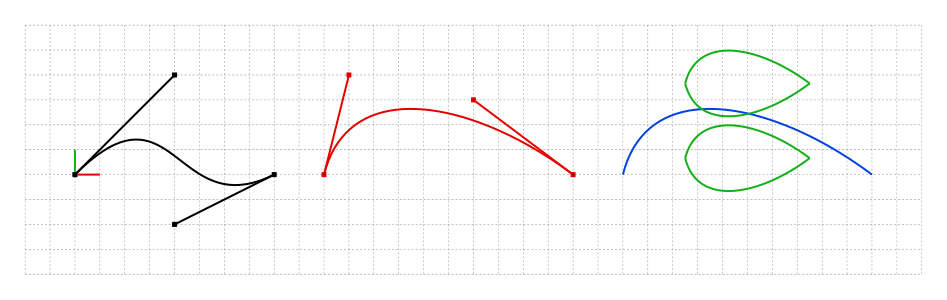

path.cubic_to(control1, control2, end): path.cubic_to draws a cubic Bezier curve using the path's position, given control points, and the end point. Path objects can be transformed like any other Shape object.

import simetri.graphics as sg

canvas = sg.Canvas()

canvas.help_lines(pos=(-50, -100), width=900, height=250, spacing=25)

path = sg.LinPath()
path.cubic_to((100, 100), (100, -50), (200, 0))
canvas.draw(path, line_width=2, handles=True)

path2 = sg.LinPath((250, 0))
path2.cubic_to((275, 100), (400, 75), (500, 0))
canvas.draw(path2, line_width=2, handles=True, line_color=sg.red)

path3 = sg.LinPath((550, 0))
path3.cubic_to((575, 100), (700, 75), (800, 0))
canvas.draw(path3, line_width=2, line_color=sg.blue)

shape = path3.mirror(sg.axis_x, reps=1).scale(.5, about=path3.center)
shape.translate(0, 75, reps=1)
canvas.draw(shape, line_width=2, line_color=sg.green)


canvas.display()

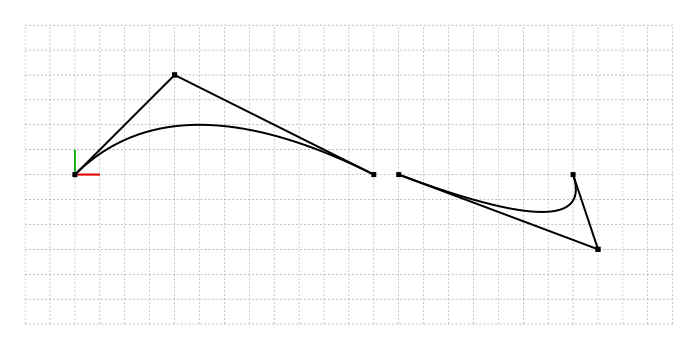

path.quad_to(control, end): path.quad_to draws a quadratic Bezier curve using the path's position, given control point, and the end point.

import simetri.graphics as sg

canvas = sg.Canvas()

canvas.help_lines(pos=(-50, -150), width=650, height=300, spacing=25)

path = sg.LinPath()
path.quad_to((100, 100), (300, 0))
canvas.draw(path, line_width=2, handles=True)

path = sg.LinPath((325, 0))
path.quad_to((525, -75), (500, 0))
canvas.draw(path, line_width=2, handles=True)


canvas.display()

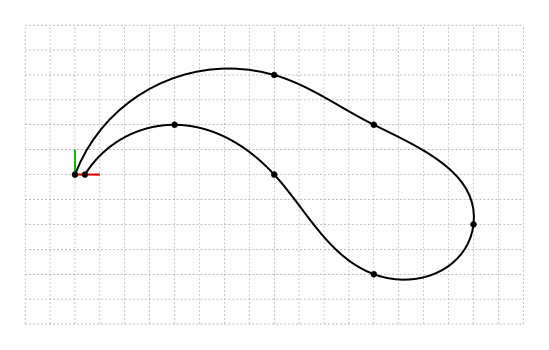

path.hobby_to(points): Draws a Hobby curve through the given points.

import simetri.graphics as sg

canvas = sg.Canvas()

canvas.help_lines(pos=(-50, -150), width=500, height=300, spacing=25)

path = sg.LinPath()

points = [(0, 0), (200, 100), (300, 50), (400, -50), (300, -100),
                (200, 0), (100, 50), (10, 0)]
path.hobby_to(points)
for p in points:
    canvas.circle(p, 3)

canvas.draw(path, line_width=2, handles=True)
canvas.display()

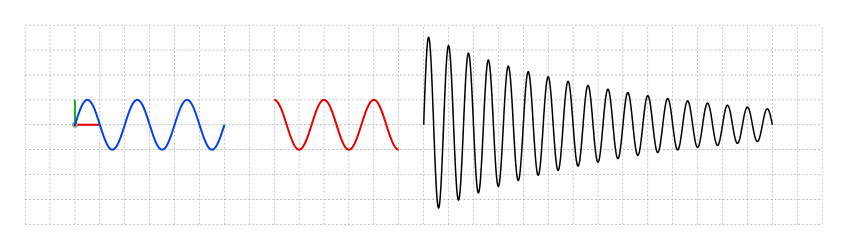

path.sine_to(period, amplitude, duration, phase_angle, damping): path.sine_to draws a sine-wave using the given arguments.

import simetri.graphics as sg

canvas = sg.Canvas()

canvas.help_lines(pos=(-50, -100), width=800, height=200, spacing=25)

path = sg.LinPath()
path.sine(period=50, amplitude=25, duration=150)
canvas.draw(path, line_width=2, line_color=sg.blue)

path2 = sg.LinPath((200, 0))
path2.sine(period=50, amplitude=25, duration=125, phase_angle=sg.pi/2)
canvas.draw(path2, line_width=2, line_color=sg.red)

path3 = sg.LinPath((350, 0))
path3.sine(period=20, amplitude=90, duration=350, damping=.005)
canvas.draw(path3, line_width=1.5)

canvas.display()

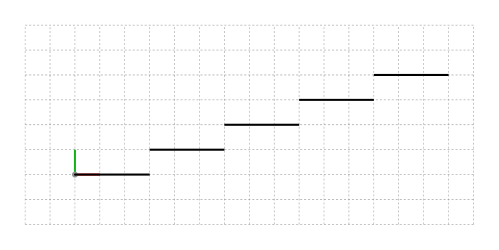

path.move_to(point): path.move_to changes the path's position without drawing a line.

import simetri.graphics as sg

canvas = sg.Canvas()

canvas.help_lines(pos=(-50, -50), width=450, height=200, spacing=25)

path = sg.LinPath()
for i in range(5):
    path.h_line(75)
    c = (i + 1)
    path.move_to((c*75, c*25))


canvas.draw(path, line_width=2)
canvas.display()

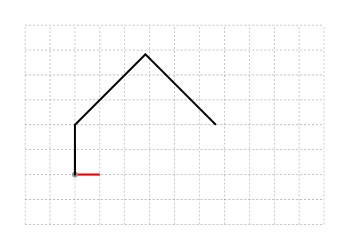

path.turn(angle, distance): path.turn turns the path by the given angle (in radians) and moves it forward by the given distance. The angle is in radians and counterclockwise positive from the positive x-axis.

import simetri.graphics as sg

canvas = sg.Canvas()

canvas.help_lines(pos=(-50, -50), width=300, height=200, spacing=25)

path = sg.LinPath()
path.forward(50)
path.turn(-sg.pi/4, 100)
path.turn(-sg.pi/2, 100)
canvas.draw(path, line_width=2)
canvas.display()

Relative motions

For some path operations, we can specify the coordinates relative to the current path position.

New position is computed by adding dx to the path's x coordinate and dy to the path's y coordinate. Path's angle is ignored.

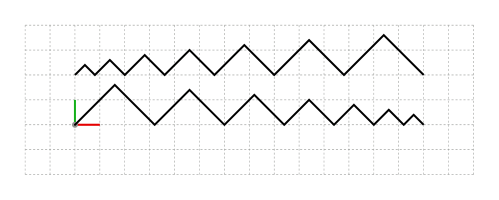

path.r_line(dx, dy): path.r_line draws a line between the path's position and (dx, dy) offset from this position.
path.r_move(dx, dy): path.r_move moves the path by the given offset values without drawing a line.

import simetri.graphics as sg

canvas = sg.Canvas()

canvas.help_lines(pos=(-50, -50), width=450, height=150, spacing=25)

path = sg.LinPath()
for i in range(7):
    x = 40 - i * 5
    y = 40 - i * 5
    path.r_line(x, y)
    path.r_line(x, -y)

path.r_move(0, 50)

for i in range(7):
    x = 40 - i * 5
    y = 40 - i * 5
    path.r_line(-x, y)
    path.r_line(-x, -y)


canvas.draw(path, line_width=2)
canvas.display()

Blended operations.

These operations blend the drawn lines to the path by using paths orientation angle.

path.blend_arc(radius_x, radius_y, start_angle, span_angle, sharp=False): Blends an arc to the path. If the sharp argument is True then blending is reversed by 180 degree.

import simetri.graphics as sg

pi = sg.pi

canvas = sg.Canvas()

canvas.help_lines(pos=(-50, -50), width=500, height=175, spacing=25)

path = sg.LinPath()
path.angle = pi/4

path.forward(50)
canvas.circle(path.pos, 3, fill_color=sg.red, stroke=False)

path.blend_arc(radius_x=50, radius_y=25, start_angle=pi/2, span_angle=-2*pi/3)
canvas.circle(path.pos, 3, fill_color=sg.red, stroke=False)

path.blend_arc(radius_x=50, radius_y=25, start_angle=pi/2, span_angle=pi)
canvas.circle(path.pos, 3, fill_color=sg.red, stroke=False)

path.blend_arc(radius_x=80, radius_y=50, start_angle=0, span_angle=-5*pi/6)
canvas.circle(path.pos, 3, fill_color=sg.red, stroke=False)

path.blend_arc(radius_x=30, radius_y=30, start_angle=0, span_angle=-pi, sharp=True)
canvas.circle(path.pos, 3, fill_color=sg.red, stroke=False)

path.blend_arc(radius_x=60, radius_y=30, start_angle=0, span_angle=-pi, sharp=True)

canvas.draw(path, line_width=2)
canvas.display()

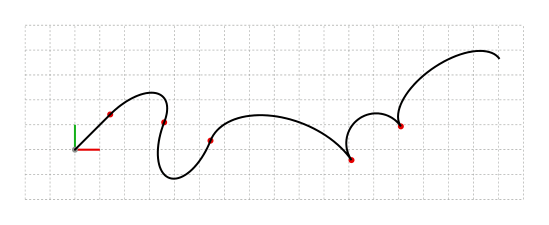

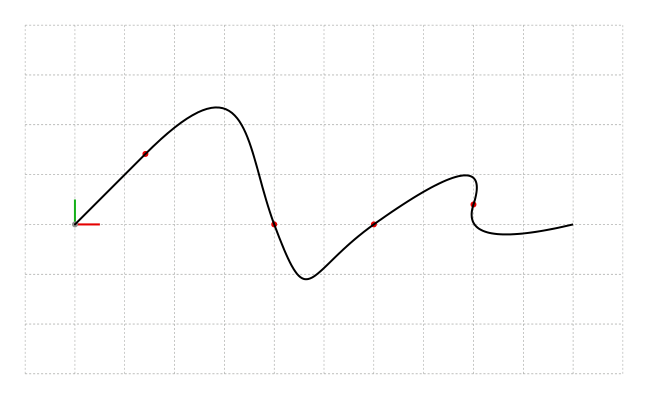

path.blend_cubic(control1_length, control2, end): Blends a cubic Bezier curve to the path.
path.blend_quad(control_length, end): Blends a quadratic Bezier curve to the path.

import simetri.graphics as sg

pi = sg.pi

canvas = sg.Canvas()

canvas.help_lines(pos=(-50, -150), width=600, height=350, spacing=50)

path = sg.LinPath()
path.angle = pi/4

path.forward(100)
canvas.circle(path.pos, 3, fill_color=sg.red, stroke=False)

path.blend_cubic(150, (170, 80), (200, 0))
canvas.circle(path.pos, 3, fill_color=sg.red, stroke=False)

path.blend_cubic(100, (230, -50), (300, 0))
canvas.circle(path.pos, 3, fill_color=sg.red, stroke=False)

path.blend_quad(150, (400, 20))
canvas.circle(path.pos, 3, fill_color=sg.red, stroke=False)
path.blend_quad(50, (500, 0))

canvas.draw(path, line_width=2)
canvas.display()

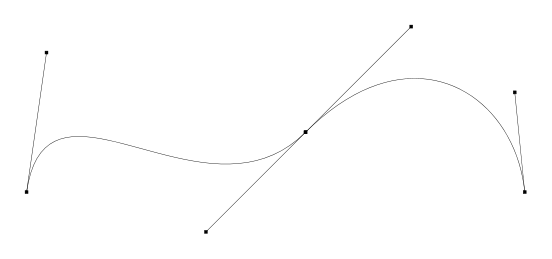

import simetri.graphics as sg

canvas = sg.Canvas()

path = sg.LinPath()
path.cubic_to(control1=(20, 140), control2=(180, -40), end=(280, 60))
path.blend_cubic(control1_length=150, control2=(490, 100), end=(500, 0))

canvas.draw(path, handles=True)
canvas.display()

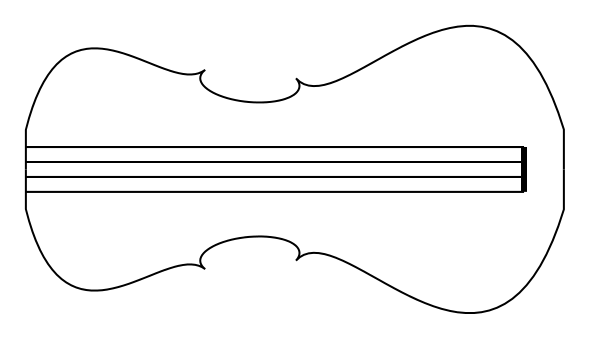

import simetri.graphics as sg

canvas = sg.Canvas()

path = sg.LinPath((0, -40))
path.forward(40)
path.cubic_to(control1=(40, 160), control2=(140, 30), end=(180, 60))
path.blend_arc(radius_x=50, radius_y=20, start_angle=sg.radians(170), span_angle=sg.radians(200), sharp=True)
path.blend_cubic(control1_length=-70, control2=(470, 230), end=(540, 0))
path.v_line(-40)

paths = path.mirror(path.bottom, reps=1)

canvas.draw(paths, line_width=2, line_join=sg.LineJoin.BEVEL)

strings = sg.Shape([(0, -17.5), (500, -17.5)]).translate(0, -15, reps=3)
canvas.draw(strings, line_width=2)
canvas.line((500, -17.5), (500, -62.5), line_width=6)
canvas.display()

path.blend_sine(period, amplitude, duration, phase_angle, damping): Blends a sine wave to the path.

import simetri.graphics as sg

canvas = sg.Canvas()

canvas.help_lines(pos=(-50, -75), width=600, height=225, spacing=25)

path = sg.LinPath()
path.line_to((100, 100))
path.blend_sine(period=50, amplitude=25, duration=150)
path.blend_arc(radius_x=50, radius_y=50, start_angle=0, span_angle=-pi/2)
path.blend_arc(radius_x=100, radius_y=50, start_angle=0, span_angle=pi/2)
path.blend_sine(period=50, amplitude=25, duration=150)

canvas.draw(path, line_width=2, line_color=sg.blue)
canvas.display()

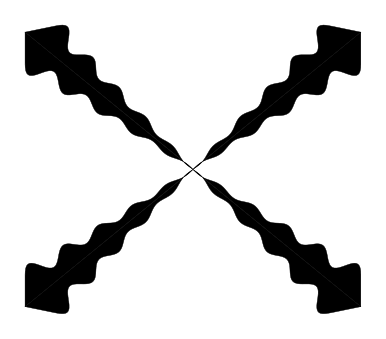

import simetri.graphics as sg

canvas = sg.Canvas()

path = sg.LinPath()
path.forward(30)

path.blend_sine(amplitude=10, duration=200, damping=.01)
path.close()

paths = path.mirror([(0, 0), path.vertices[-2]], reps=1)
paths.mirror(paths.right, reps=1)
paths.mirror(paths.top, reps=1)

canvas.draw(paths)

canvas.display()

Path utility functions

Path objects provides a number of utility functions to help with drawing and manipulating paths. These include: path.push, path.pop, path.r_coord, and path.r_polar.

path.r_coord(dx, dy): Returns a position by offsetting the path's current position by dx and dy along the aligned axes to the path's angle (visualize a coordinate system with the origin at the path's position and the positive y-axis is aligned with the path's angle.
path.r_polar(r, theta): Returns a position by offsetting path's current position by r * cos(theta) and r * sin(theta) from the polar coordinate system with the origin at the path's position and the zero degree line oriented 90 degrees clockwise from the path's orientation angle.

Unlike the path.r_line and path.r_move operations, path.r_coord and path.r_polar is computed by using the path.angle.

Path objects have a LIFO stack (last in first out) that holds (position, angle) tuples.

path.push: Pushes the path's position and angle to path's stack.
path.pop: Pops the position and angle values from the stack and applies them to the path object.

Note: Unlike the `path.r_line` and `path.r_move` operations, `path.r_coord` and `path.r_polar` is computed by using the `path.angle`.

import simetri.graphics as sg

canvas = sg.Canvas()
canvas.help_lines(pos=(-50, -50), width=200, height=200, spacing=25)

path = sg.LinPath()
print(f"path.pos: {path.pos}")
path.line_to((50, 50))
print(f"path.r_coord(20, -30): {path.r_coord(50, 50)}")
canvas.circle(path.r_coord(50, 50), 3, fill_color=sg.red, stroke=False)

path2 = sg.LinPath(path.pos)
path2.angle = path.angle
path2.push()

path2.forward(50)
path2.pop()
path2.angle -= pi/2
path2.forward(50)

canvas.draw(path)
canvas.draw(path2, line_width=2, line_color=sg.blue)

canvas.display()

path.pos: (0, 0)
path.r_coord(20, -30): (120.71067811865476, 50.0)

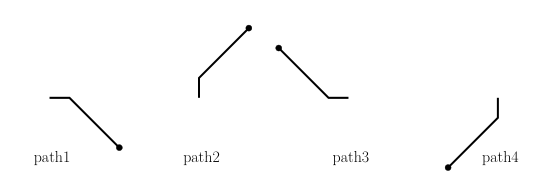

import simetri.graphics as sg

canvas = sg.Canvas()

for i in range(4):
    path = sg.LinPath()
    path.angle = sg.radians(i * 90)
    path.forward(20)
    x, y = path.r_coord(50, 50) # y-axis is aligned with the path.angle
    canvas.circle((x, y), 3)
    print(f"path{i+1}.pos at first segment: {sg.round_point(path.pos)}")
    print(f"path{i+1}.angle: {sg.degrees(path.angle):.1f} degrees")
    print("x, y = path.r_coord(50, 50)")
    print(f"x: {x:.1f}, y: {y:.1f}")
    print('_' * 45)
    path.line_to((x, y))
    canvas.draw(path, line_width=2)
    canvas.text(f"path{i+1}", (0, -60), font_size=16)
    canvas.translate(150, 0)

canvas.display()

path1.pos at first segment: (20.0, 0.0)
path1.angle: 0.0 degrees
x, y = path.r_coord(50, 50)
x: 70.0, y: -50.0
_____________________________________________
path2.pos at first segment: (0.0, 20.0)
path2.angle: 90.0 degrees
x, y = path.r_coord(50, 50)
x: 50.0, y: 70.0
_____________________________________________
path3.pos at first segment: (-20.0, 0.0)
path3.angle: 180.0 degrees
x, y = path.r_coord(50, 50)
x: -70.0, y: 50.0
_____________________________________________
path4.pos at first segment: (-0.0, -20.0)
path4.angle: -90.0 degrees
x, y = path.r_coord(50, 50)
x: -50.0, y: -70.0
_____________________________________________

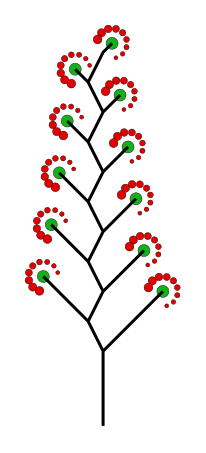

from math import copysign

import simetri.graphics as sg

def flower(radius, canvas, path):
    canvas.circle(path.pos, 6, fill_color=sg.green)
    angle = sg.pi/6
    for i in range(9):
        x, y = path.r_polar(radius, (i*angle) - angle)[:2]
        canvas.circle((x, y), 2+i*.3, fill_color=sg.red)

canvas = sg.Canvas()
dim = 15
path = sg.LinPath()
path.forward(5 * dim)
path.push()
path.r_line(4 * dim, 4 * dim)
flower(dim, canvas, path)
dist = 3 * dim
for i in range(10):
    path.pop()
    sign = copysign(1, i%2 - 0.5) # -1 if i%2 else 1
    path.r_line(dim * sign , 2 * dim)
    path.push()
    delta = 4 * i
    path.r_line(sign * (dist - delta), dist - delta)
    flower(dim, canvas, path)

canvas.draw(path, line_width=3)
canvas.display()

LinPath Path Objects

LinPath

Relative motions

Blended operations.

Path utility functions

`LinPath` Path Objects
