Conventions

Coordinates

SİMETRİ uses Cartésian coordinates to define geometry. Origin is located at the lower-left corner with the positive x direction pointing rightward and positive y direction pointing upwards.

All angles are in radians and measured from the positive x-axis in counterclockwise positive direction.

  • sg.radians(degrees) -> float converts from degrees to radians.
  • sg.degrees(radians) -> float converts from radians to degrees.
  • sg.angle(point: Point) -> float returns the angle of the vector from the origin to the point (x, y) in radians.
  • sg.line_angle(start: Point, end: Point) -> float returns the angle of the line from start to end in radians.

There are utility functions to convert from/to polar-coordinates.

  • sg.polar_to_cartesian(r: float, theta: float) -> Point[float, float] converts from polar coordinates to Cartésian coordinates.
  • sg.cartesian_to_polar(x: float, y: float) -> Point[float, float] converts from Cartésian coordinates to polar coordinates.

Help Lines

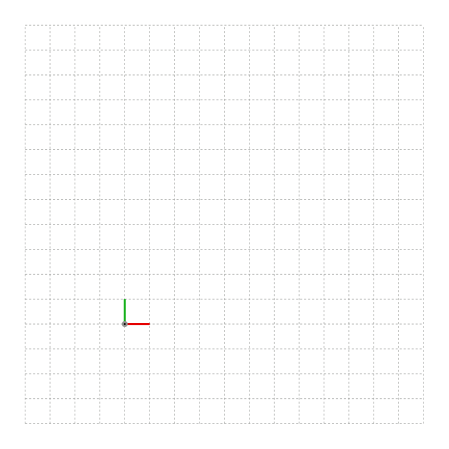

canvas.help_lines() method can be used to draw a grid with the origin (depicted with a circle), x (colored red), and y-axis (colored green) shown on the canvas. The help_lines method has the following signature:

canvas.help_lines(pos: Point=(-100, -100), width: float=600, height: float=600,
                                                            spacing: float=25)

Help-lines

Coordinate transformations

Canvas object can be translated, rotated, and scaled. The order of transformations can be important. All drawing operations performed following the transformation will be affected by the transformation. Help-lines reflect the coordinate transformations as well.

Transformed Canvas
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
import simetri.graphics as sg

canvas = sg.Canvas()

F = sg.letter_F(fill_color=sg.teal, line_width=2, alpha=.5) # (1)!
canvas.draw(F, fill_color=sg.burgundy)
canvas.rotate(-sg.pi/4)

canvas.help_lines() # (2)!
canvas.draw(F)

canvas.save('/your/path/translate_rotate.png', overwrite=True)

  1. sg.letter_F()

    letter_F() is a function that returns an F-shaped object. Since this shape has no symmetries, it is a good example to show the effect of transformations.

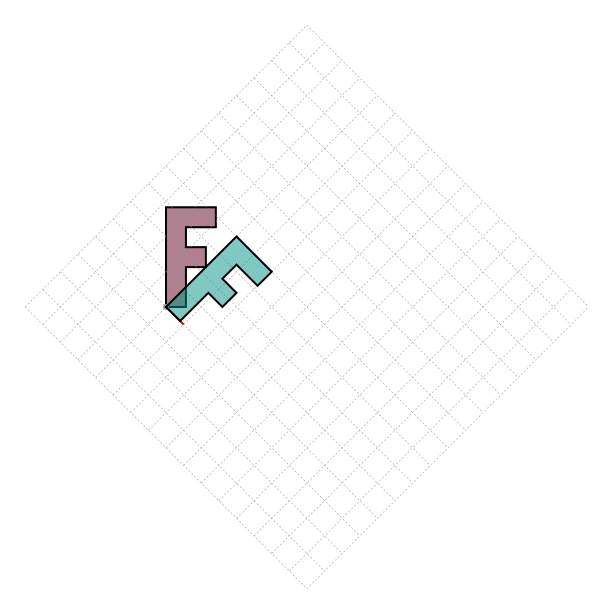

  2. canvas.help_lines() after canvas.rotate()

    Since the help_lines are drawn after the rotation, they will be rotated as well.

Transformed help-lines

Transformed letter_F and Canvas
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
import simetri.graphics as sg

canvas = sg.Canvas()

F = sg.letter_F(fill_color=sg.teal, line_width=2, alpha=.5)
F.translate(100, 100)

canvas.draw(F, fill_color=sg.burgundy)
canvas.rotate(-sg.pi/4)

canvas.help_lines()
canvas.draw(F)

canvas.save('/your/path/rotate.png', overwrite=True)
Transformed help-lines

Units

For defining geometry (using Shape objects), SİMETRİ uses points as the unit of measurement. For images, the unit of measurement is pixels. The conversion between points and pixels is as follows (assuming a resolution of 96 DPI):

  • 1 point = 1 / 72 inch
  • 1 pixel = 1 / 96 inch (1 / DPI)
  • 1 point = 0.75 pixel (72 / DPI)

All angles are in radians. The conversion between degrees and radians is as follows:

  • 1 degree = \(\frac{\pi}{180}\) radians
  • 1 radian = \(\frac{180}{\pi}\) degrees
  • 1 radian = 57.2958 degrees

Other units used in \(\LaTeX\)

Unit Explanation
pt Equal to 1/72.27 inch
in inch
mm millimeter
cm centimeter
ex height of an 'x' character in the current font
em width of an 'M' character in the current font
mu 1/18 em
sp special point, 65,536sp = 1pt

Points, vertices, and coordinates

In SİMETRİ, points are represented as sequences of two or three values. The first two values correspond to the x and y coordinates of the point, while the third value, which is always 1, represents the point in homogeneous coordinates. Internally, multiple points are stored as NumPy arrays, specifically as a 2D array with the shape (n, 3), where n is the number of points. For 2D points, the third value remains 1 to ensure representation in homogeneous coordinates.

The term "points" usually refers to the initial (x, y) coordinates, while "vertices" refer to the shape.vertices property, which is a tuple of (x, y) tuples. Since tuples are immutable in Python, the vertices cannot be modified directly. However, Shape objects can behave like Python lists, allowing for the modification, addition and removal of points. The term "coordinates" can refer to either the initial points or the vertices, depending on the context.

Matrices

Matrices serve as the backbone of the SİMETRİ library. They are utilized for defining geometry (as 𝑛 × 3 matrices representing 𝑛 points) and performing transformations (as 3 × 3 matrices). The transformation matrix, specifically a 3 × 3 matrix, is used to transform points in homogeneous coordinates. Both geometry definition and transformations follow column-major order to avoid the need for transposing matrices back and forth. Although most modern linear-algebra books use row-major order, as long as we are consistent this difference does not pose any issues. The transformation matrix can be summarized as follows:

\[T = \begin{bmatrix} \cos \theta & \sin \theta & s_x\\ -\sin \theta & \cos \theta & s_y\\ d_x & d_y & 1 \end{bmatrix}\]

where \(\theta\) is the angle of rotation in radians, \(s_x\) and \(s_y\) are the scaling factors in the x and y directions, respectively, and \(d_x\) and \(d_y\) are the translation factors in the x and y directions, respectively.

How to read composite transformations.

When we combine multiple transformations, the order of operations matters. For example, if we want to apply a translation followed by a rotation, we need to multiply the translation matrix by the rotation matrix. The order of multiplication is important because matrix multiplication is not commutative. In other words, \(T_1 \cdot T_2 \neq T_2 \cdot T_1\).

If the matrices are in row-major order, the multiplication order is from right to left. This convention is popular because it is consistent with the way functions are applied in mathematics.

In SİMETRİ, we use column-major order for matrices, which means that the multiplication order is from left to right. This is easier to read for beginners but it may cause problems for people who are used to the row-major order.

Every Shape object is initiated with the identity matrix. The identity matrix is a square matrix with ones on the diagonal and zeros elsewhere. It is represented as follows:

\[I = \begin{bmatrix} 1 & 0 & 0\\ 0 & 1 & 0\\ 0 & 0 & 1 \end{bmatrix}\]

Every transformation is represented as a matrix multiplication. For example, the transformation of a point \(P\) is represented as:

\[P' = P \cdot T\]

where \(P'\) is the transformed point, \(T\) is the transformation matrix, and \(P\) is the original point.

When we have n points, the transformation is represented as:

\[P = \begin{bmatrix} x_1 & y_1 & 1\\ x_2 & y_2 & 1\\ \vdots & \vdots & \vdots\\ x_n & y_n & 1\\ \end{bmatrix}\]
\[P' = P \cdot T\]
\[P' = \begin{bmatrix} x'_1 & y'_1 & 1\\ x'_2 & y'_2 & 1\\ \vdots & \vdots & \vdots\\ x'_n & y'_n & 1\\ \end{bmatrix}\]

where \(P'\) is the transformed points, \(T\) is the transformation matrix, and \(P\) is the original points.

The key advantage of these matrix representations is their efficiency in computing multiple transformations across multiple points simultaneously. Instead of applying each transformation to individual points one by one, we can first multiply the transformation matrices together and then apply the resulting matrix to all points in a single operation. This approach significantly improves computational speed, especially when dealing with large numbers of points.

Matrix multiplication is not commutative: \(T_1 \cdot T_2 \neq T_2 \cdot T_1\)

Chaining methods

Most methods in SİMETRİ return the object itself. This allows for chaining methods together to create more complex transformations. For example, the following code applies successive transformations to a shape:

shape.translate(10, 20).rotate(30).scale(2, 3)

Most Canvas methods also return the object itself (Canvas object), allowing for chaining methods together. For example, the following code applies successive Canvas operations in a single line:

canvas.draw(shape).translate(100, 0).draw(shape2).save('output.png')

Arguments with None default values

Allmost all methods in SİMETRİ have default values for their arguments. If an argument is not specified, the default value will be used.
